Product Highlights:

 Flexible service access and scheduling capabilities

• Supports FE/GE/10/100GE, E1, STM-1/4/16/64, OTU1/2/2e/4 and other service interfaces, meeting the full service transmission rate of 2M~100G.
• A single sub-box supports a maximum of 640 Gbit/s packet capacity, 700 Gbit/s OTN capacity, 320 Gbit/s SDH high-end, and 40 Gbit/s SDH low-end capacity, and supports large-scale E1 access.
• Unified scheduling of PKT, VC, and ODUk, and single or hybrid networking of SDH/MSTP, PTN, and OTN.
• Support LAN/WAN mode.

 Perfect protection ability

• Provides abundant network-level protection, including LSP 1:1, PW APS, Ethernet LAG, channel 1+1 protection, line 1+1 protection, SNCP, MSP, MSP, and MSRP rings, ensuring network availability.
• Provide complete device-level protection, including 1+1 redundancy protection for power disks and master control crossover disks, and TPS 1:N(N≤4) protection for E1 disks.

 Abundant operation and maintenance functions

• Supports abundant OAM, improves network O&M capabilities, quickly locates faults, and reduces O&M costs.
• Supports TWAMP measurement to monitor end-to-end service quality such as connectivity, latency, jitter, and packet loss rate, and provides data support for fault operation and maintenance and quality evaluation of various services and network devices.
• Support SD function to achieve hybrid networking with YDL PTN series and other devices.
• Supports second-level traffic to realize the value-added software functions of operators.
• Support global time zone setting, alarm performance reporting and alarm reversal function to improve project maintainability.
• Supports the reverse reading function, which is convenient for unified maintenance of the whole network through the NMS in the later stage.
• Support single tray and box serial number reading function, which is convenient for customers to trace and maintain materials in the later stage.

 Green and energy-saving, easy to install

• Excellent hardware and structure design, effectively reduce power consumption, low carbon and energy saving.
• Miniaturization, high integration, support for pluggable optoelectronic modules, strong applicability.
• Flexible installation mode, support 19-inch, ETSI 21-inch cabinet installation.

Application scenarios

    YDL PTN 0059 is a compact POTN product launched to meet the flexible transmission requirements of the access layer, compatible with MPLS-TP technology and OTN technology, and positioned as an access or edge aggregation node of the metro network to meet the full service access requirements of operators.

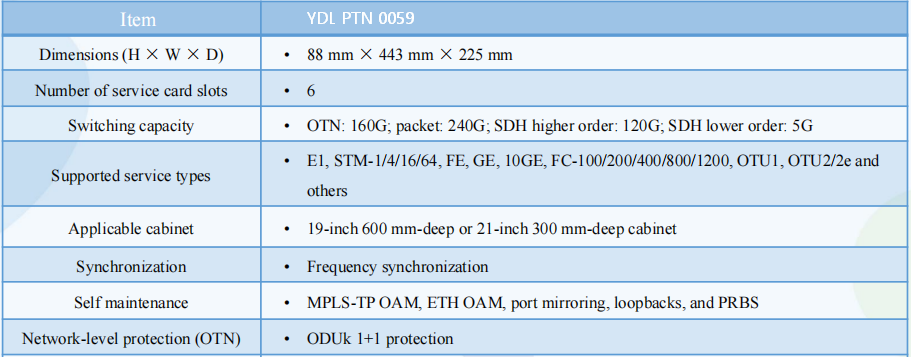

Product Specifications
