Product Highlights:

 Reliable network quality

• Supports protection switching technologies such as Spanning Tree Protocol, R-Link, and G.8032, and supports 50 millisecond fast protection switching
• Support multiple security protection mechanisms such as anti-attack and anti-spoofing
• Supports multiple authentication methods to ensure high-reliability network quality

 Abundant business control

• Supports Layer 2 to 4 packet filtering
• Supports bandwidth rate limiting, priority scheduling, and mapping
• Flexible queue scheduling and congestion algorithms, through diversified methods; Realize the rich management functions and real-time requirements for the business

 Efficient green energy saving

• Adopt a new generation of highly-integrated chip energy-saving circuit design, and the heat dissipation is balanced
• Support idle port hibernation to fully save power consumption
• Low radiation, up to the standard of household appliances, harmless to the human body

 Flexible PoE features

• Supports IEEE 802.3at standard and can supply power to 30W high-power network equipment
• Support automatic power adjustment and time-sharing power supply to meet the user's flexible power supply configuration requirements

Product Specifications

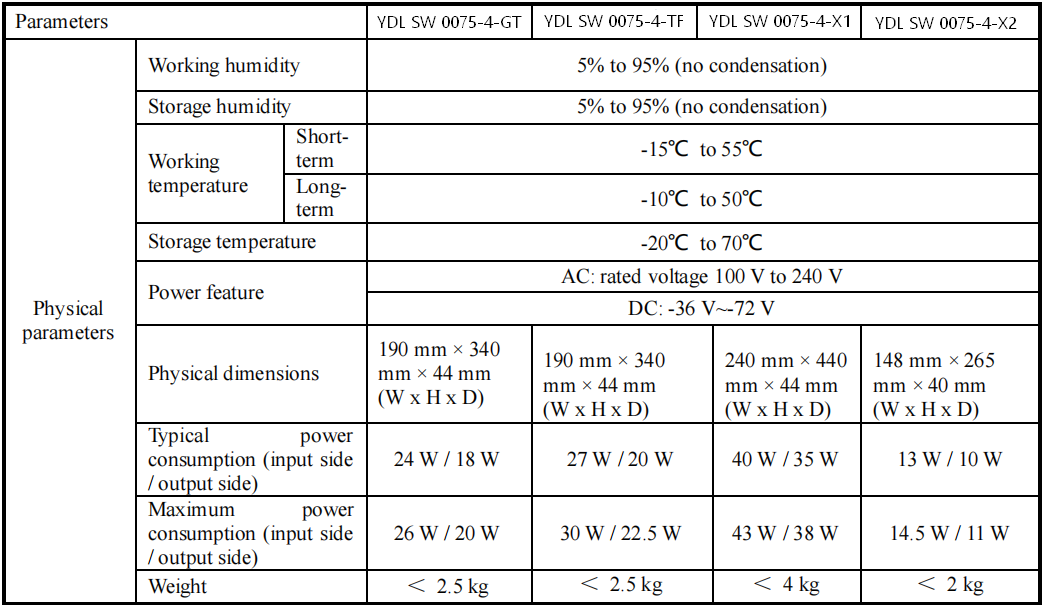

 Physical Specifications

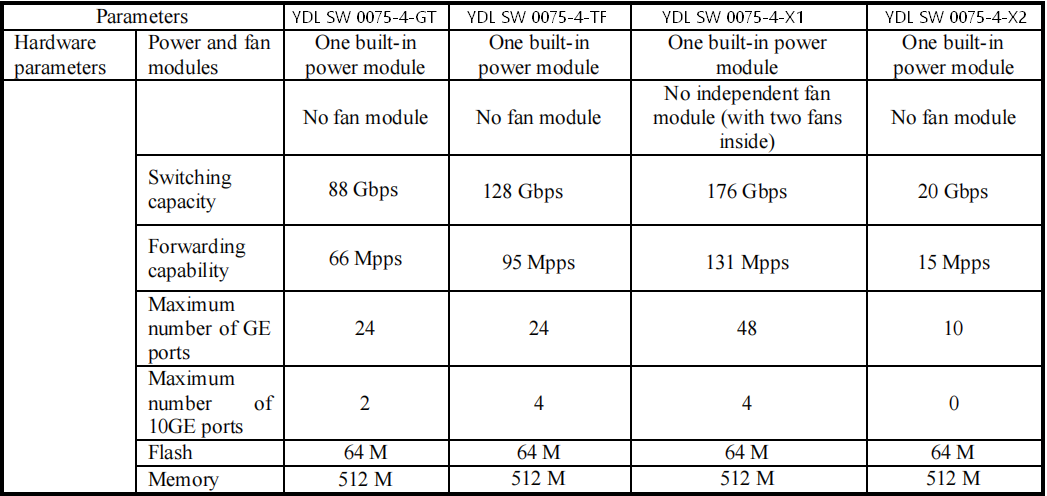

 Hardware Parameters
