Product Highlights

 Perfect security prevention mechanism

• Supports broadcast, multicast, and DLF storm suppression, ARP attack prevention, black hole MAC address, IP Source Guard, and CPU protection

• Support user authentication, user permission grading, user binding based on port + MAC + IP, port isolation, DHCP snooping and other functions

• ACLs can be configured to remove illegal attacks from network traffic to protect network security to the greatest extent

 Complete QoS policy

• Each port supports 8 priority queues

• Bandwidth throttling based on ports, flows, VLANs, etc

• Support scheduling algorithms and WRED drop algorithms in SP/PQ, RR, WRR, DRR, SP/PQ+WRR, SP/PQ+DRR and other modes

 High reliability and flexible networking

• Support dual AC/DC power supply redundancy, can flexibly choose single and dual power supply working modes

• Supports stacking and cross-device link aggregation and VRRP virtual routing redundancy protocols

• Support BFD fast connect fault detection function and IEEE 802.3ah and 802.1ag

 Strong multi-service support capabilities

• Supports 4K service VLANs, VLAN mapping, and flexible QinQ

• Packets can be classified based on different key fields, such as ports, VLANs, and flows, to achieve more flexible service distribution and multi-service bearing

• Supports bandwidth rate limiting, priority scheduling and mapping, and flexible queuing scheduling algorithms

• Supports rich multicast protocols, such as IGMP Snooping, IGMP Proxy, IGMP Filter, IGMP Fast Leave, etc., and supports cross-VLAN multicast replication

Product Specifications

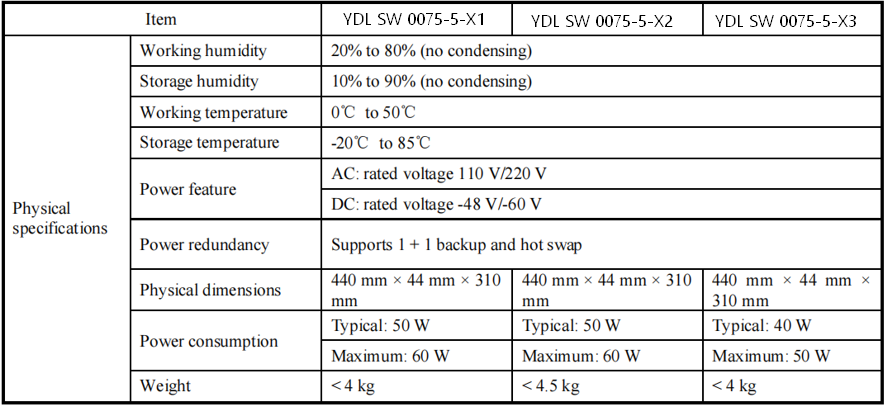

Physical Specifications

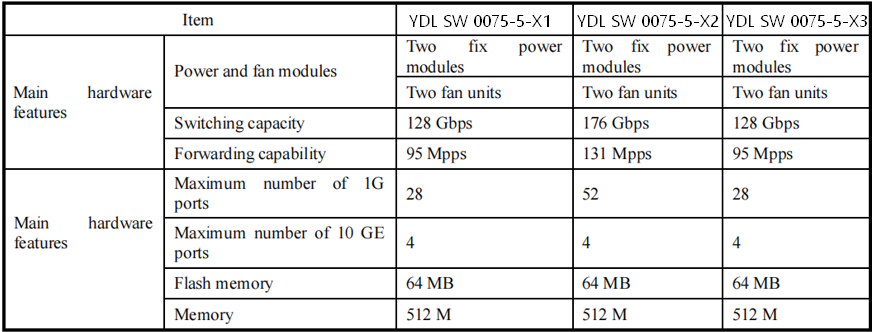

Hardware Parameters
